NEW TIG PLATFORM

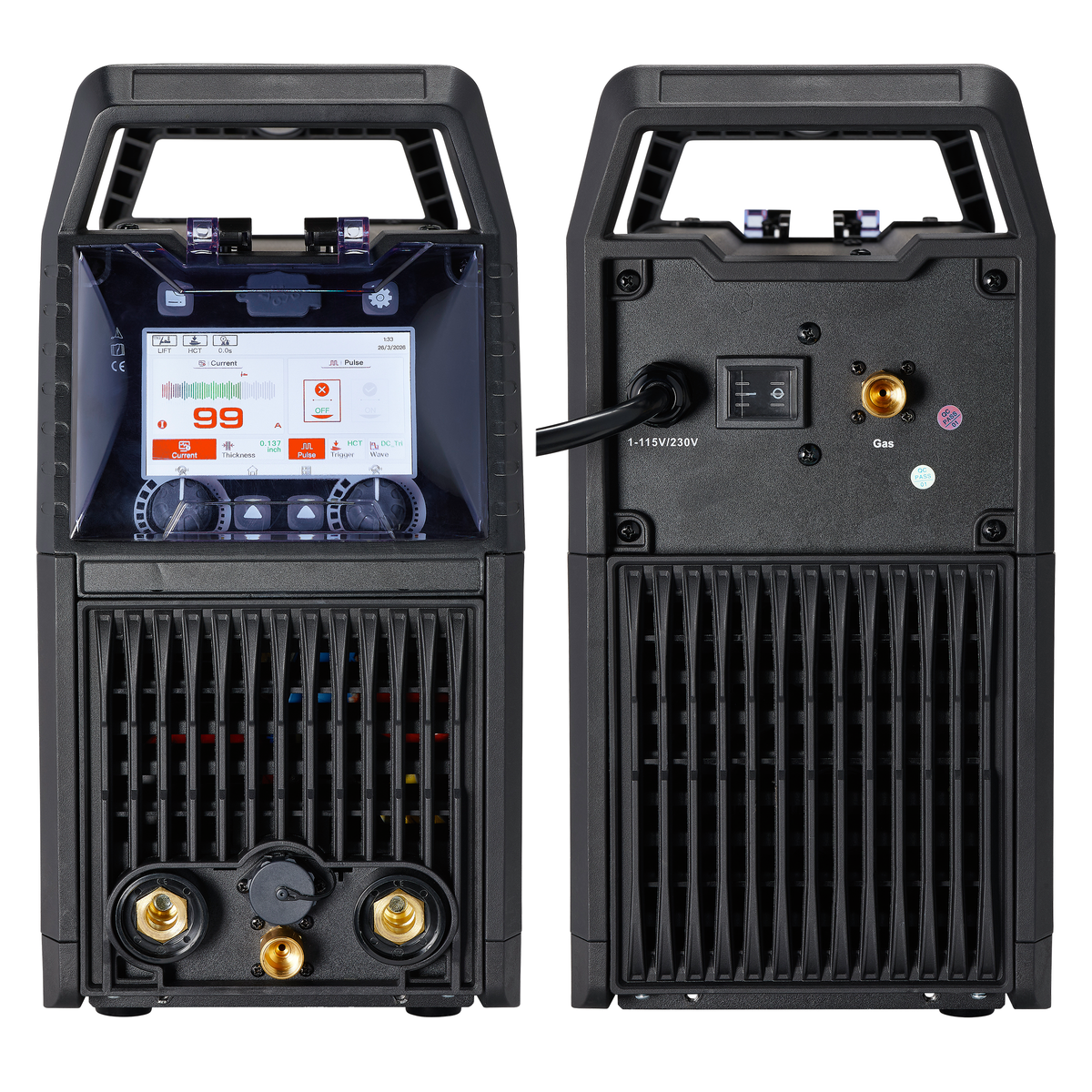

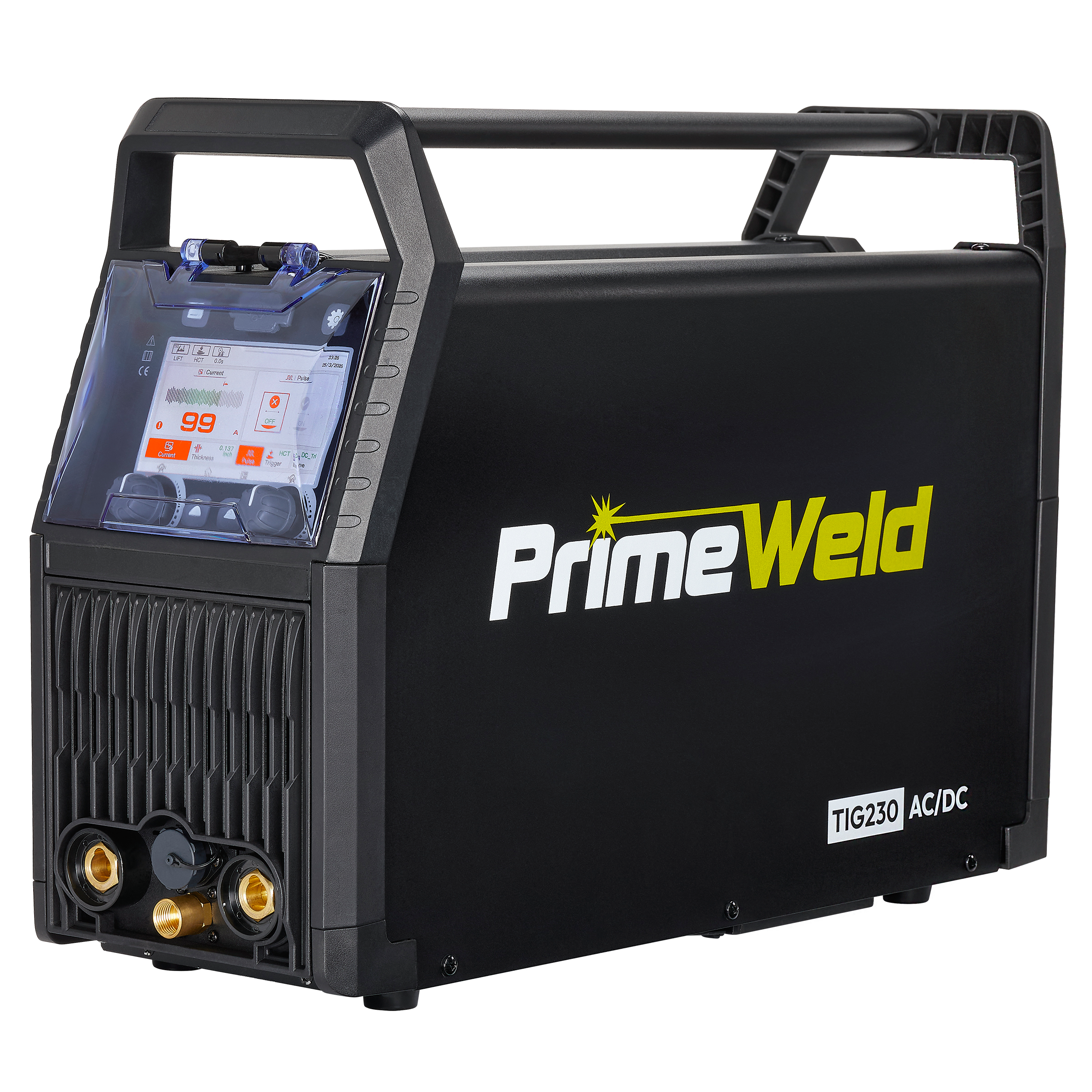

TIG230 AC/DC TIG Welder with Pulse + Touchscreen Control
AC/DC TIG • 9 AC WAVEFORMS • TOUCHSCREEN CONTROL
NEW TIG PLATFORM
TIG230 AC/DC TIG Welder with Pulse + Touchscreen Control
AC/DC TIG • 9 AC WAVEFORMS • TOUCHSCREEN CONTROL
$2,199.00
The TIG230 combines touchscreen control, advanced waveform tuning, Mixed AC/DC TIG capability, and 230A of output power for precise welding across aluminum, stainless, titanium, copper, and more.
230A Output • Job Memory • Wireless Pedal • 110/220V
- 9 AC Waveforms
- Mixed AC/DC TIG
- Wireless Foot Pedal Included
- Extra Fusion & Cap Shaping
- Multiple CK Torch Options
BUILD YOUR SYSTEM
COMPLETE YOUR TIG230 SETUP
Add the Smart Cooler and TIG230 Cart to complete your setup. Save 10% when bundled with the TIG230.
Bundle & Save 10%
Add the TIG230, Smart Cooler, and Cart to your cart to unlock 10% savings.
Discount is applied automatically in cart when the TIG230, Smart Cooler, and Cart are purchased together.
Next Generation TIG Control
A Completely New Welding Experience
The TIG230 introduces PrimeWeld's most advanced TIG platform yet, combining touchscreen control, customizable AC waveforms, Mixed AC/DC TIG capability, and professional-grade arc tuning in one powerful machine.
Built to help you spend less time fighting settings and more time laying down clean, consistent welds.

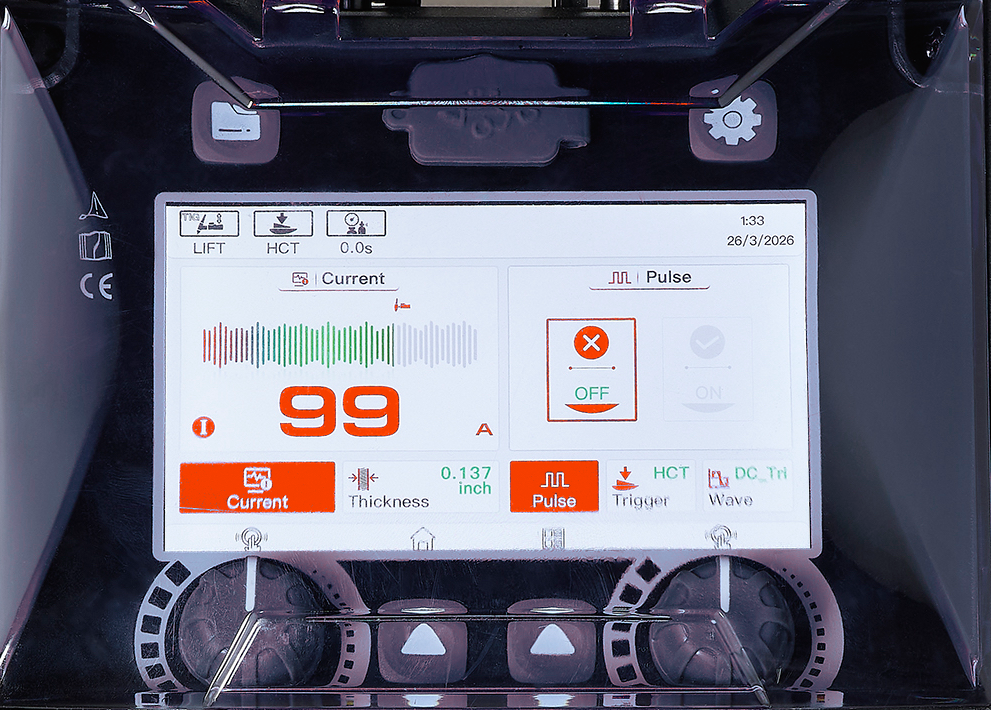

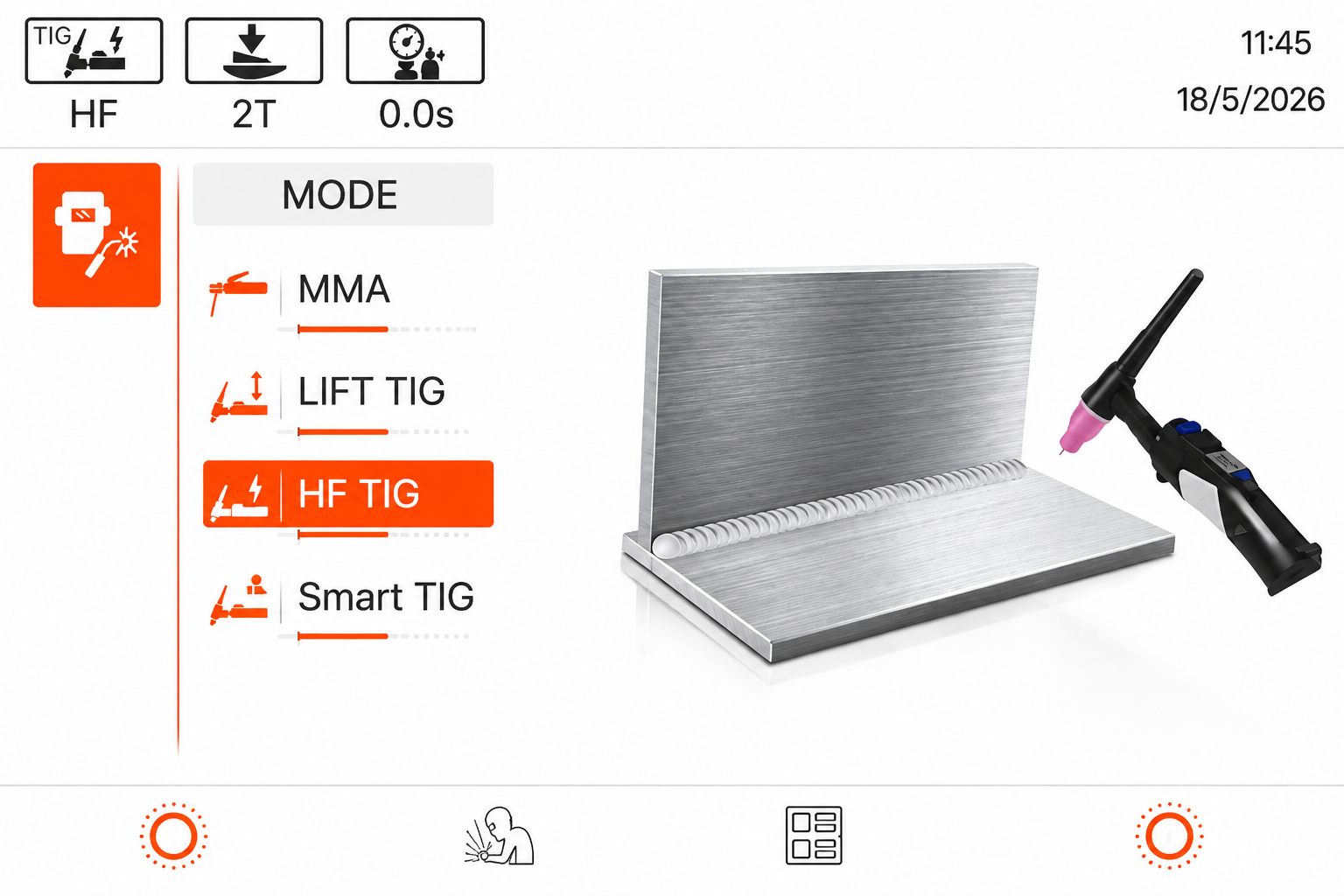

Touchscreen Control
Advanced TIG Control. Visualized.
Dial in your weld with a modern touchscreen interface that makes advanced TIG settings easier to see, adjust, and repeat.
Arc Stability
Clean, Consistent Arc Control
Fine-tune waveform shape, pulse settings, and amperage directly from the touchscreen interface to achieve stable arc performance, smoother puddle control, and repeatable weld quality.

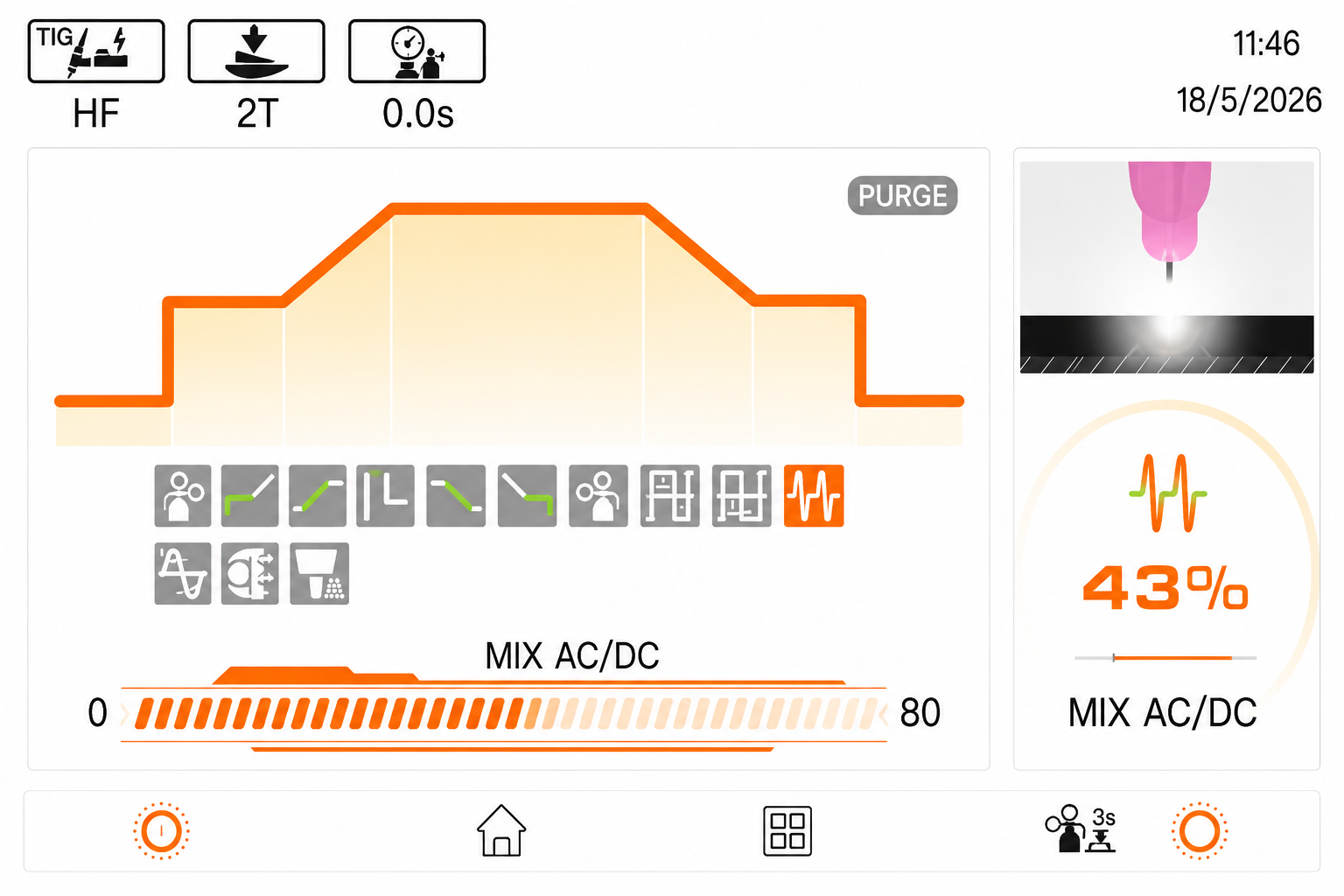

Waveform Tuning
Shape Your Arc With Precision
Use visual waveform controls to adjust AC/DC settings and tune weld behavior through the touchscreen interface.

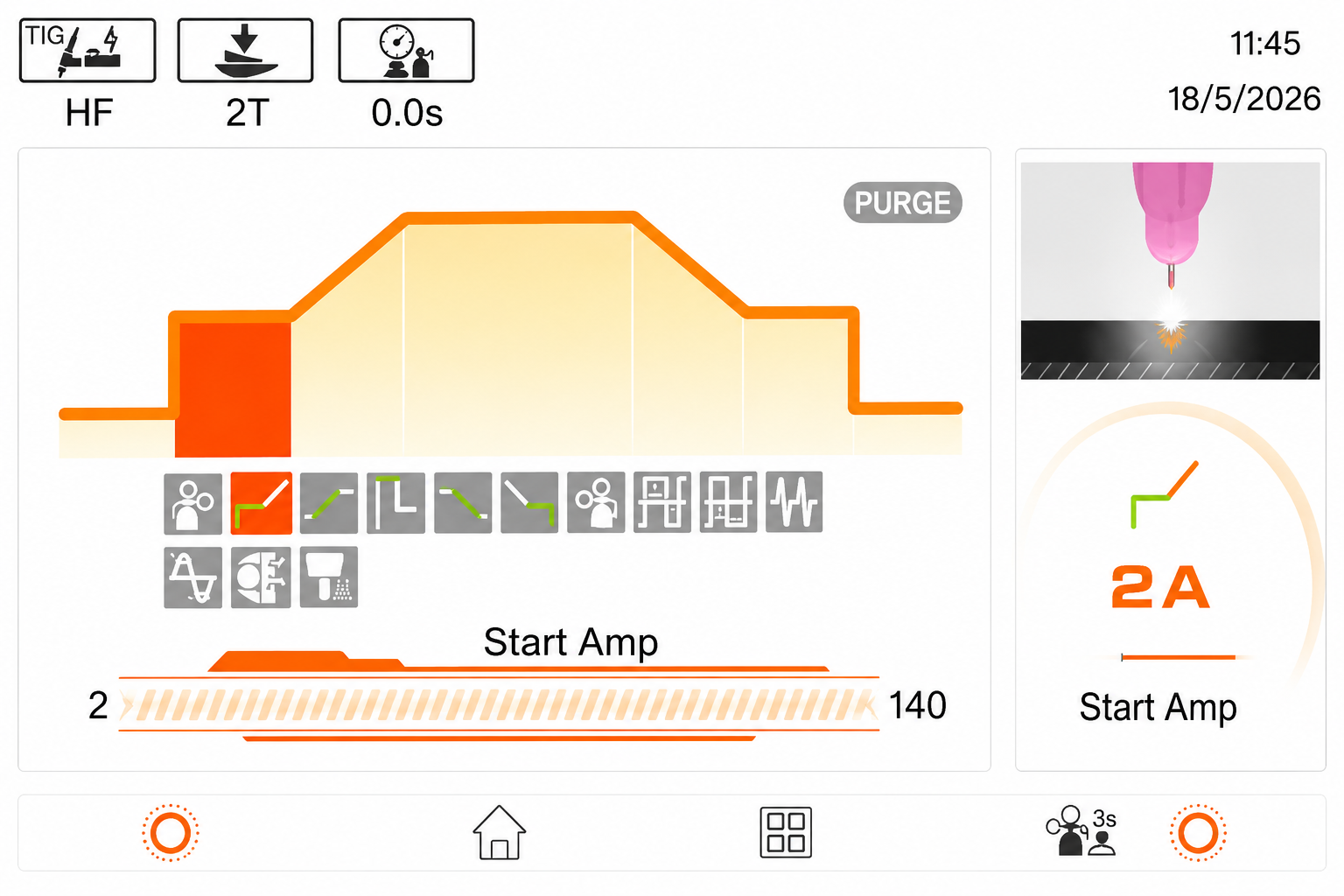

Start Amp Control
Dial In Cleaner Arc Starts
Adjust start amperage directly from the touchscreen interface for smoother arc starts and improved weld control.

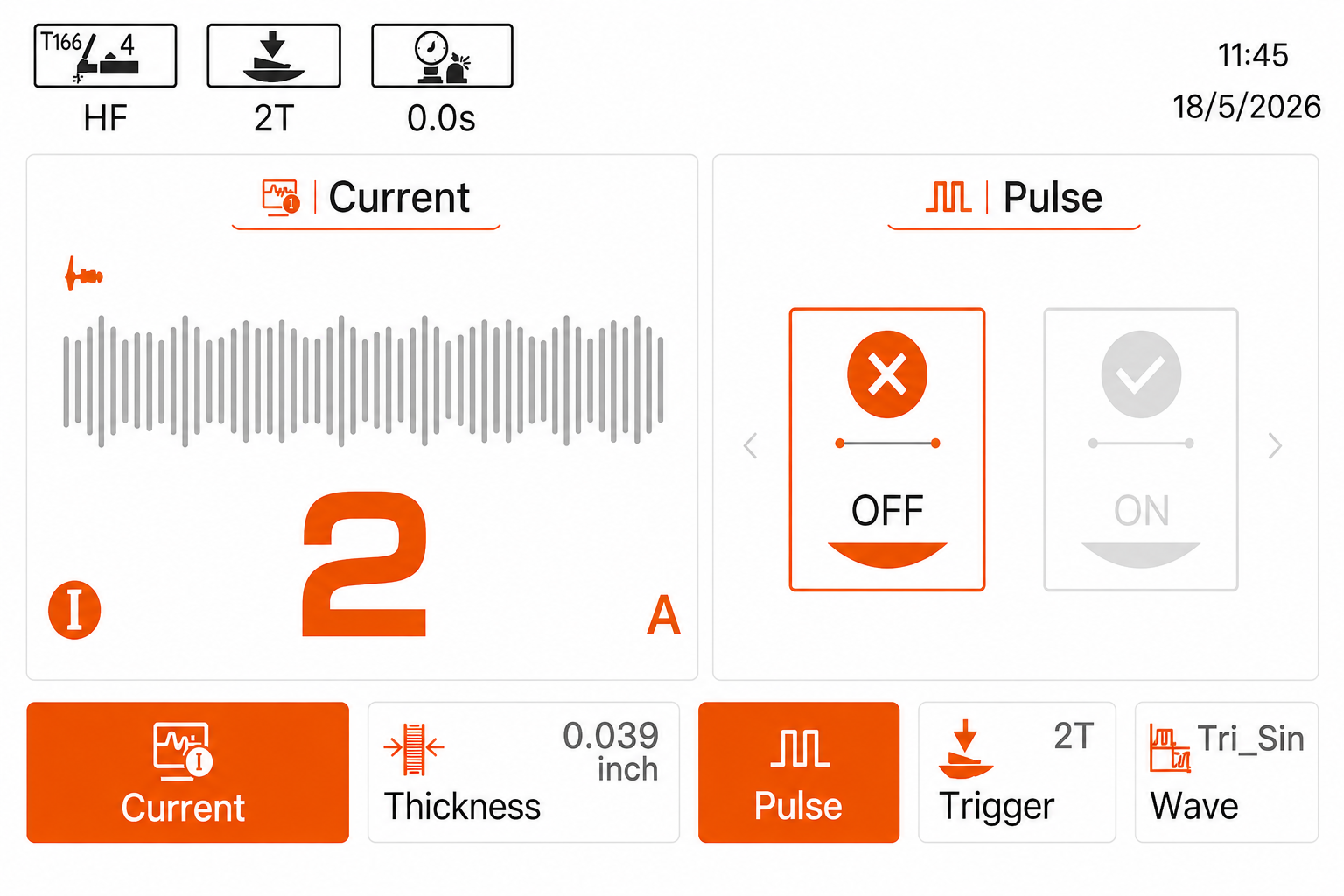

Pulse Control
Control Heat With Confidence
Visually adjust pulse settings through the touchscreen interface for greater control over heat input and weld response.

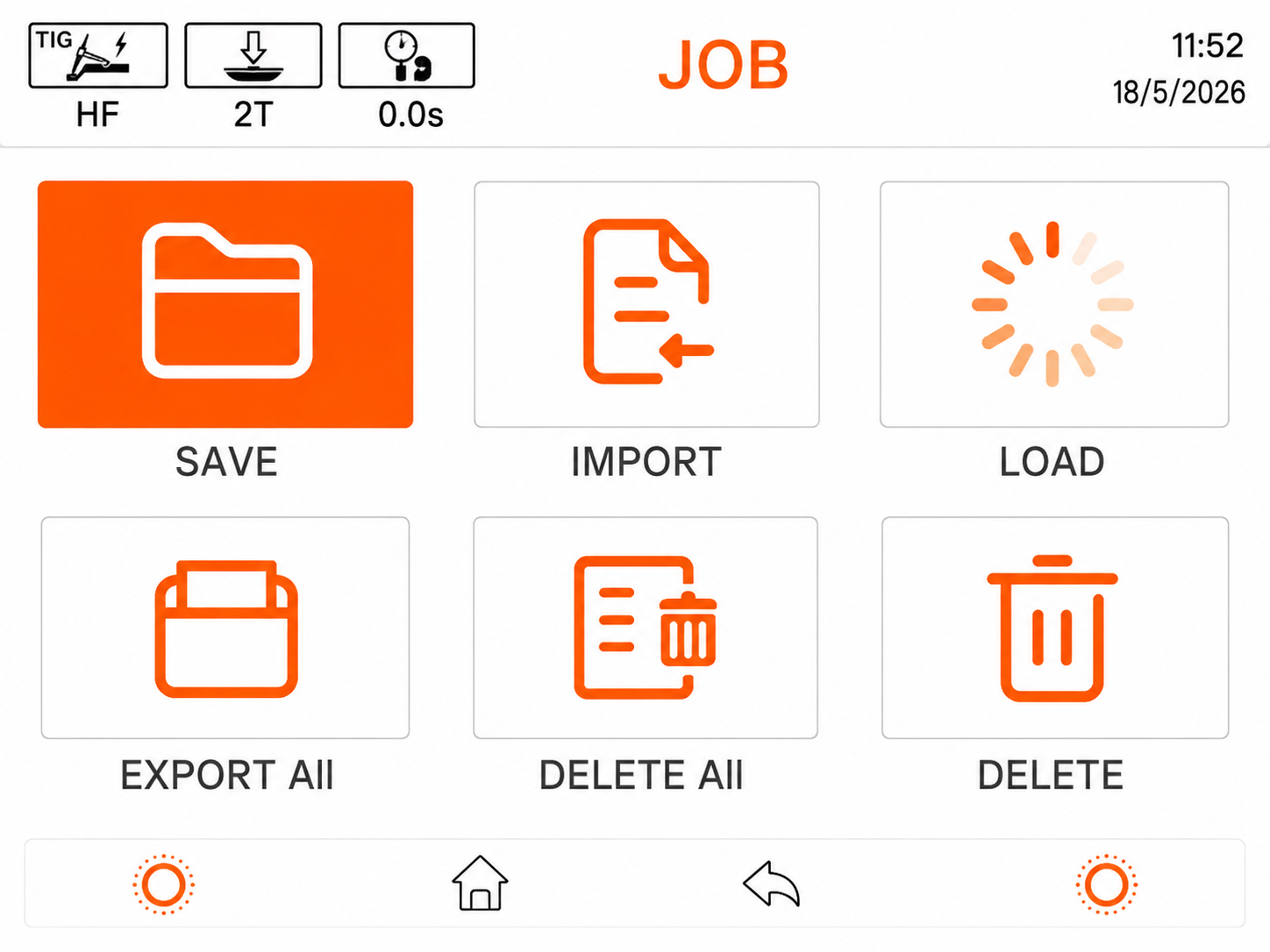

Saved Jobs
Save, Load, and Repeat Your Best Setups
Save and load weld settings directly from the machine’s touchscreen interface for faster setup changes and repeat jobs.
Built for the Shop
Real Control in a Rugged Machine
The TIG230 combines advanced touchscreen control with the durability and support PrimeWeld customers expect.
ADVANCED CONTROLS
BUILT-IN FEATURES
No guessing. No fighting settings. Just clean TIG.
9 AC Waveforms
Choose from nine waveform profiles including Square, Sine, Triangle, and hybrid combinations to fine-tune arc characteristics, cleaning action, penetration, and puddle control for any aluminum application.
MIXED AC/DC TIG
Blends AC cleaning action with DC penetration for faster puddle establishment and improved performance on thicker aluminum.
EXTRA FUSION CONTROL
Fine-tune arc intensity and heat concentration to optimize penetration, puddle control, and overall weld quality across a wide range of materials.
2MP AC TIG START
Advanced AC arc-start technology delivers clean, reliable starts with improved stability and reduced tungsten contamination.
AC Balance & Frequency
Adjust AC balance and frequency to fine-tune cleaning action, penetration, arc focus, and weld appearance when welding aluminum.

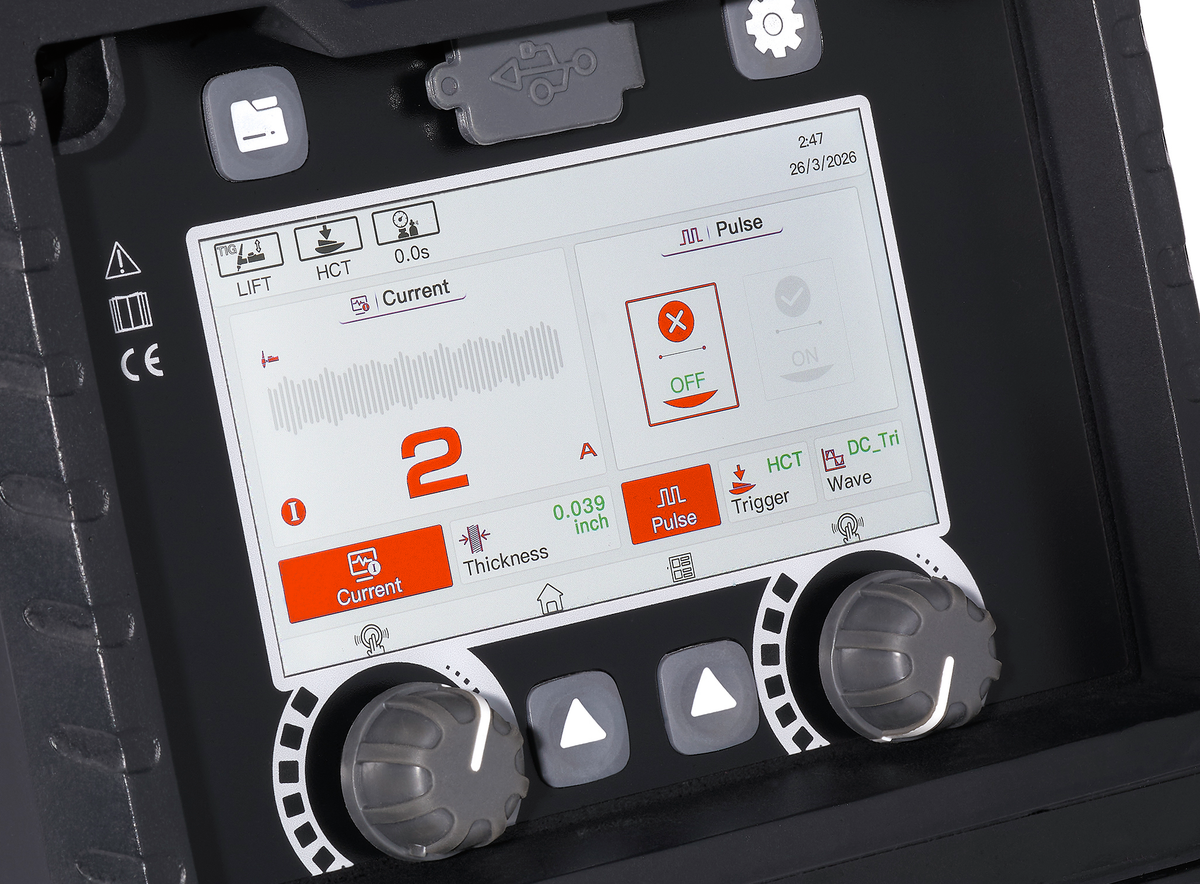

5" TOUCHSCREEN CONTROL
Large color LCD touchscreen with intuitive navigation, built-in setup guidance, and quick access to every welding process and parameter.
APPLICATIONS
WHAT CAN YOU WELD?
Weld aluminum, titanium, copper, stainless steel, magnesium, zinc alloys, and more with advanced AC/DC TIG and Stick welding capabilities.
Aluminum
Advanced AC controls, 9 waveform options, adjustable balance and frequency, and Mixed AC/DC TIG capability provide exceptional performance on aluminum fabrication projects.
Stainless Steel
Produce clean, precise welds on stainless steel for food-grade fabrication, automotive applications, shop projects, and detailed TIG work.
Titanium
Stable arc characteristics and advanced TIG controls provide the precision and consistency required for demanding titanium welding applications.
Copper & Silicon Bronze
Fine-tune heat input and arc behavior for excellent control when welding copper and silicon bronze, making the TIG230 ideal for specialty fabrication and artistic metalwork.
Magnesium & Zinc Alloys
Advanced AC waveform control and adjustable balance settings help optimize arc characteristics when welding magnesium and zinc alloys.
Fabrication & Repair
From mild steel fabrication and tube work to cast iron repair using MMA/Stick welding, the TIG230 delivers versatile performance for shop, maintenance, and repair applications.
COMPLETE PACKAGE
WHAT’S INCLUDED
Everything you need to start welding — just add argon.
Cables & Connections

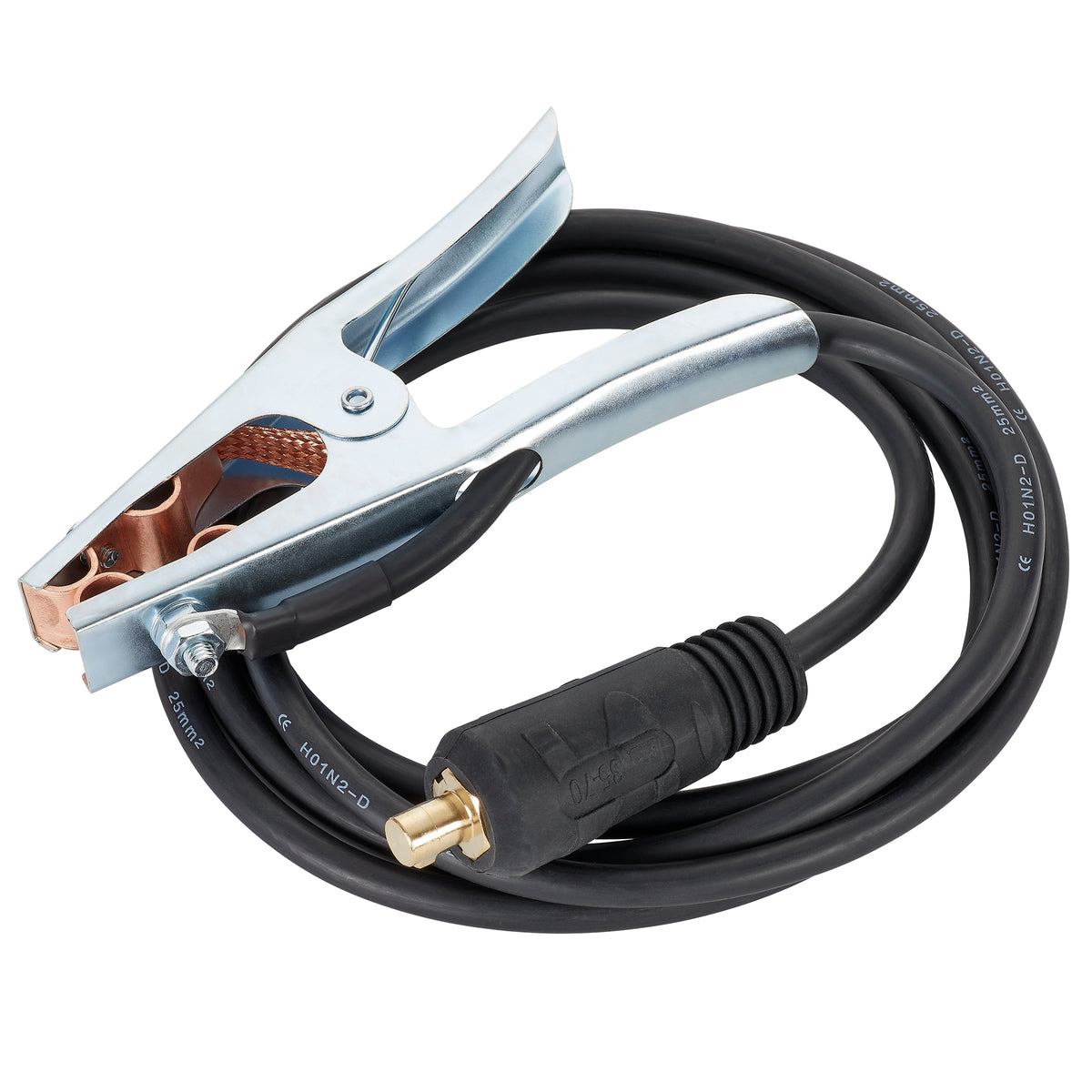

- Ground Clamp — 12 ft cable

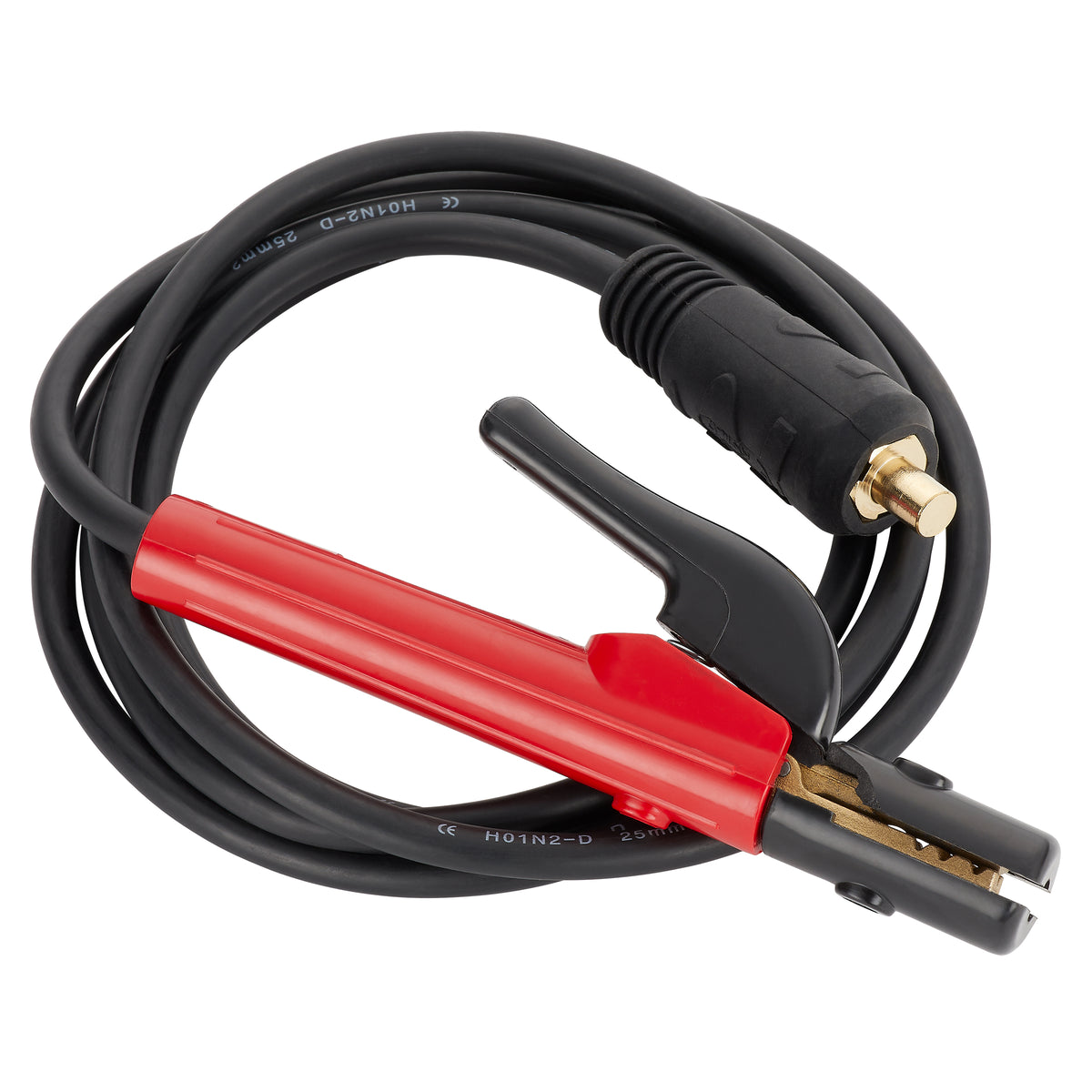

- Stick Electrode Holder — 12 ft cable

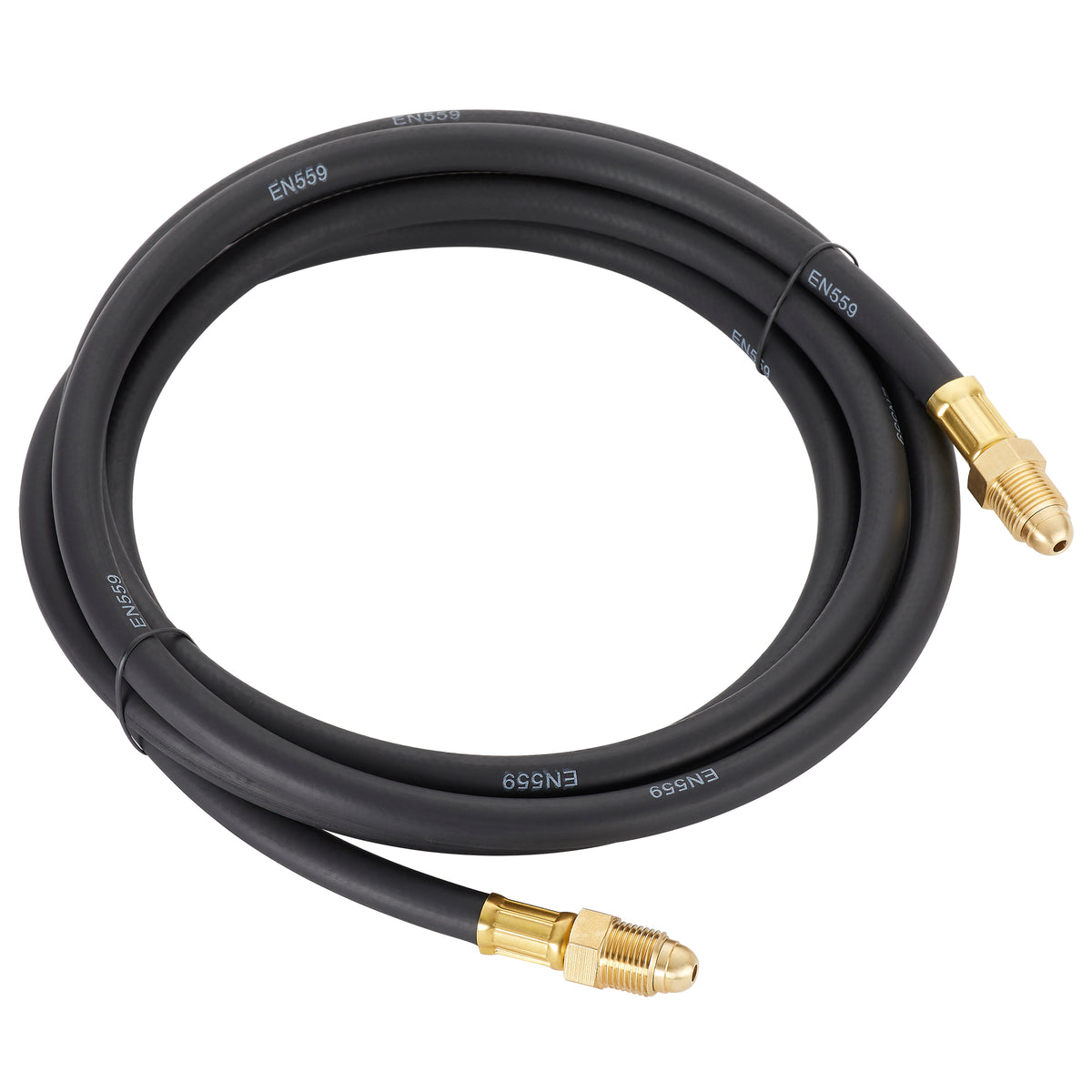

- Argon Hose
- Gas Regulator
- 240V to 120V Power Adapter
Torch & Control

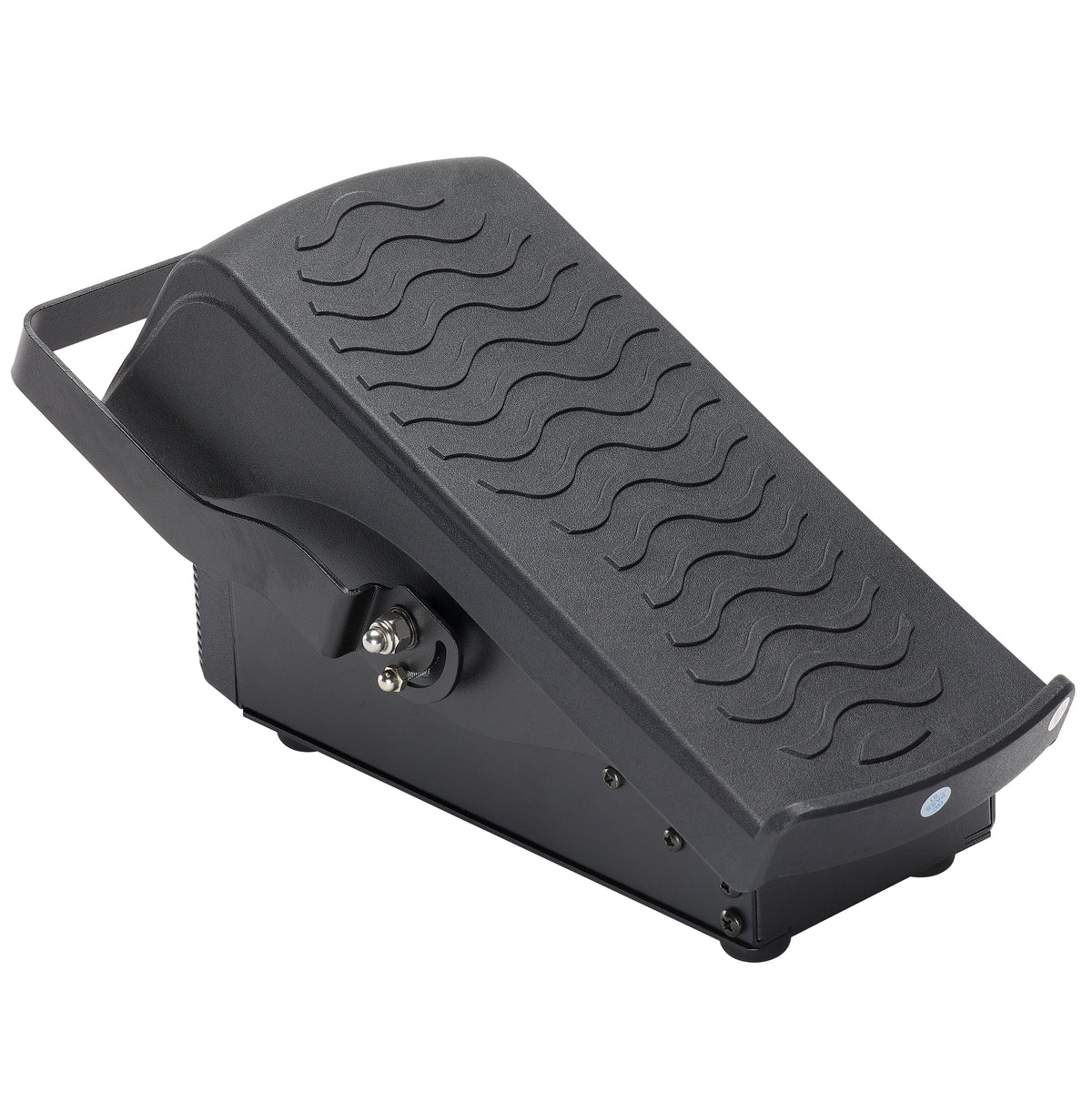

- Wireless Foot Pedal
- Torch Switch
Support & Extras
- Owner's Manual
- 3-Year Warranty Coverage
- U.S.-Based Technical Support
TECHNICAL DETAILS
SPECIFICATIONS
POWER
Input Voltage
90V-275V (50-60 Hz)
Output Range
TIG: 2-230A
Stick: 10-200A
DUTY CYCLE
TIG
35% @ 230A
60% @ 175A
100% @ 136A
STICK
35% @ 200A
60% @ 152A
100% @ 118A
Advanced TIG Features
9 AC Waveforms
Square, Sine, Triangle, & Hybrid Waveforms
Mixed AC/DC TIG
Included
Extra Fusion (Amperage Control)
Included
Cap Shaping
Included
2MP AC TIG Start
Included
SIZE AND WARRANTY
Weight
46 lbs
Dimensions
22" L × 8" W × 16" H
Warranty
3-Year Warranty — Parts and Labor. Extended Warranty Available.
ADVANCED CONTROLS
Pulse Frequency
0.5–999 Hz
AC Balance
25–50%
AC Frequency
50-250 Hz
Gas Flow Settings
Pre-Flow: 0–20 sec
Post-Flow: 0–20 sec
Up/Down Slope
0-20 sec
2T / 4T Trigger Modes
Included
To see the full specifications, check out the User Manual below.
