NEW MULTI-PROCESS PLATFORM

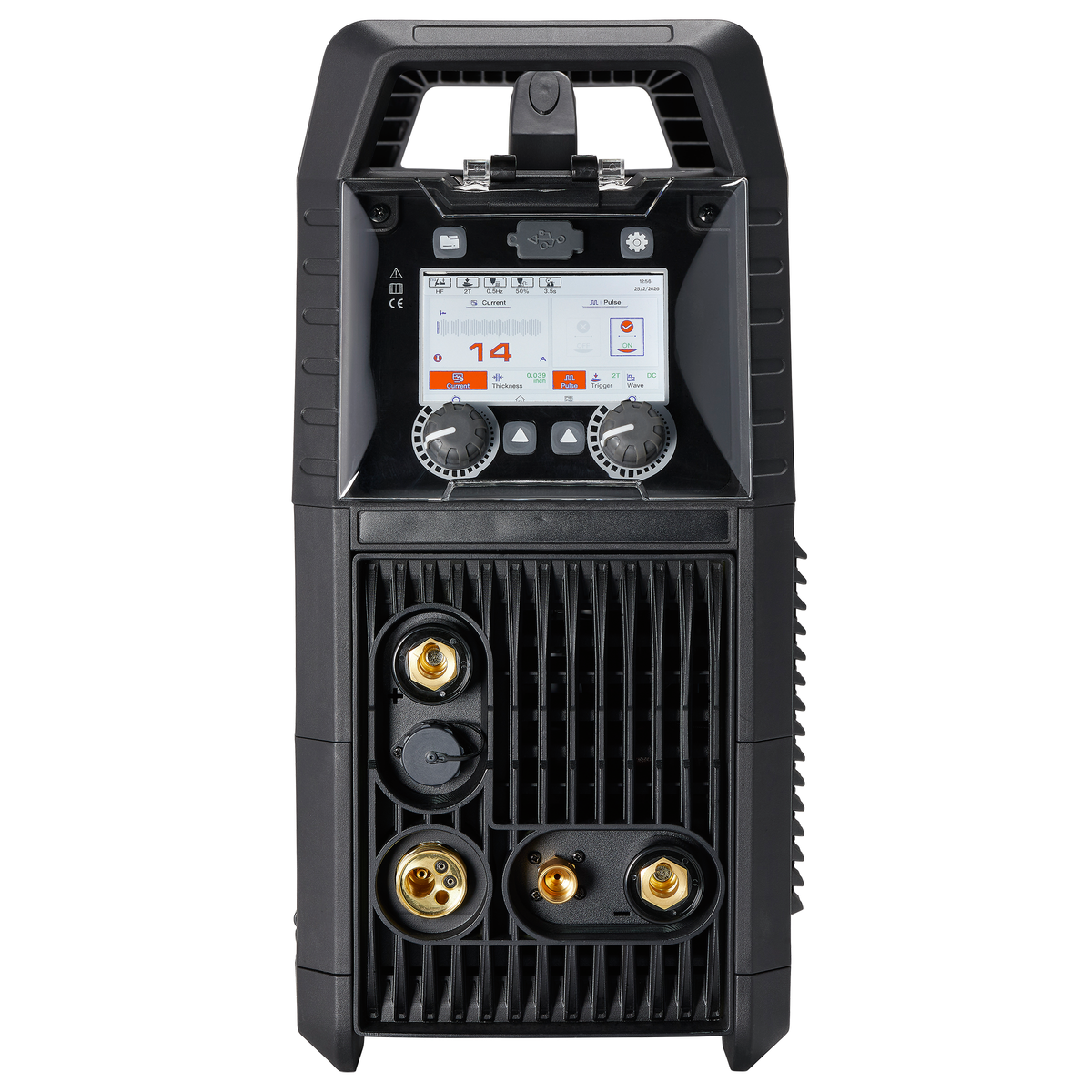

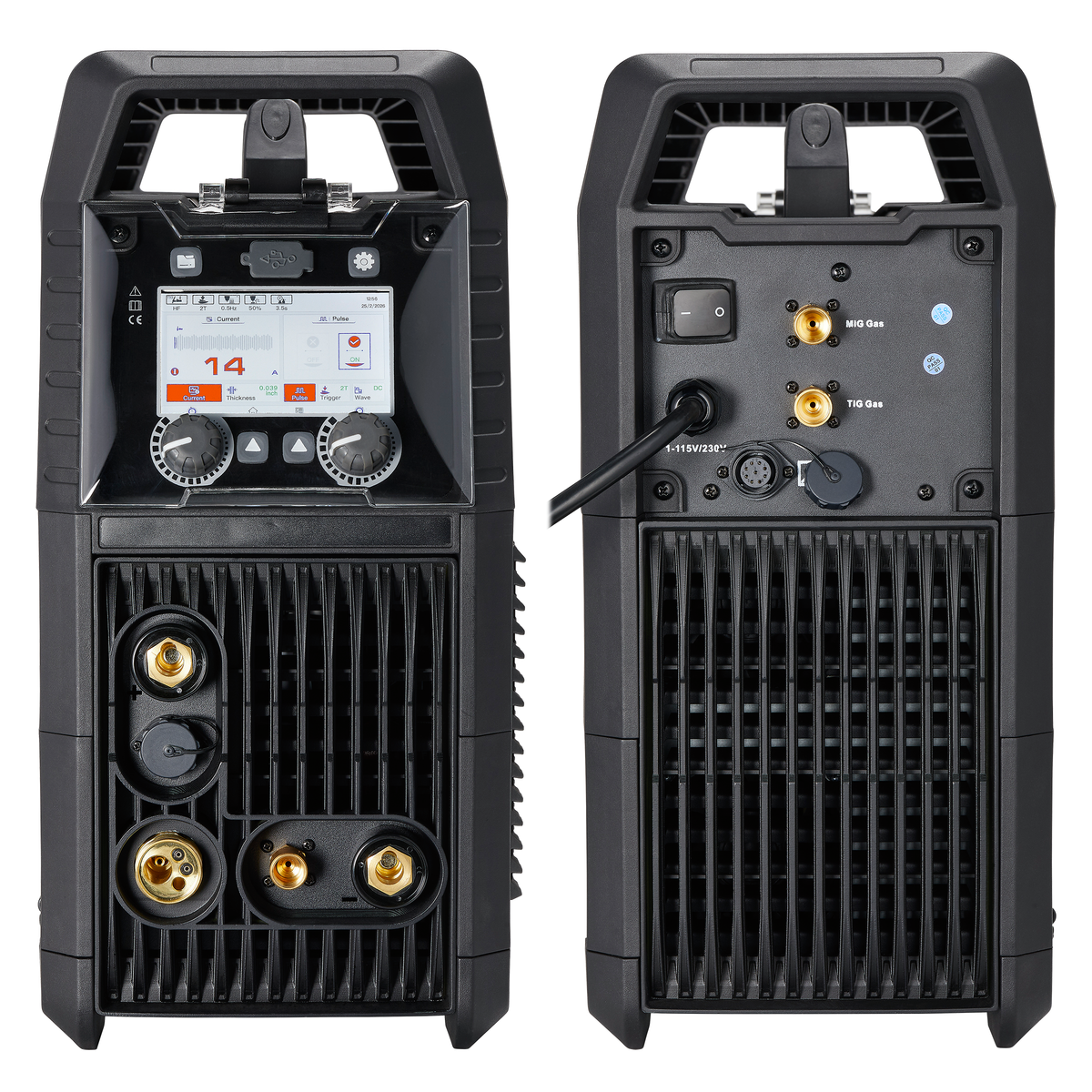

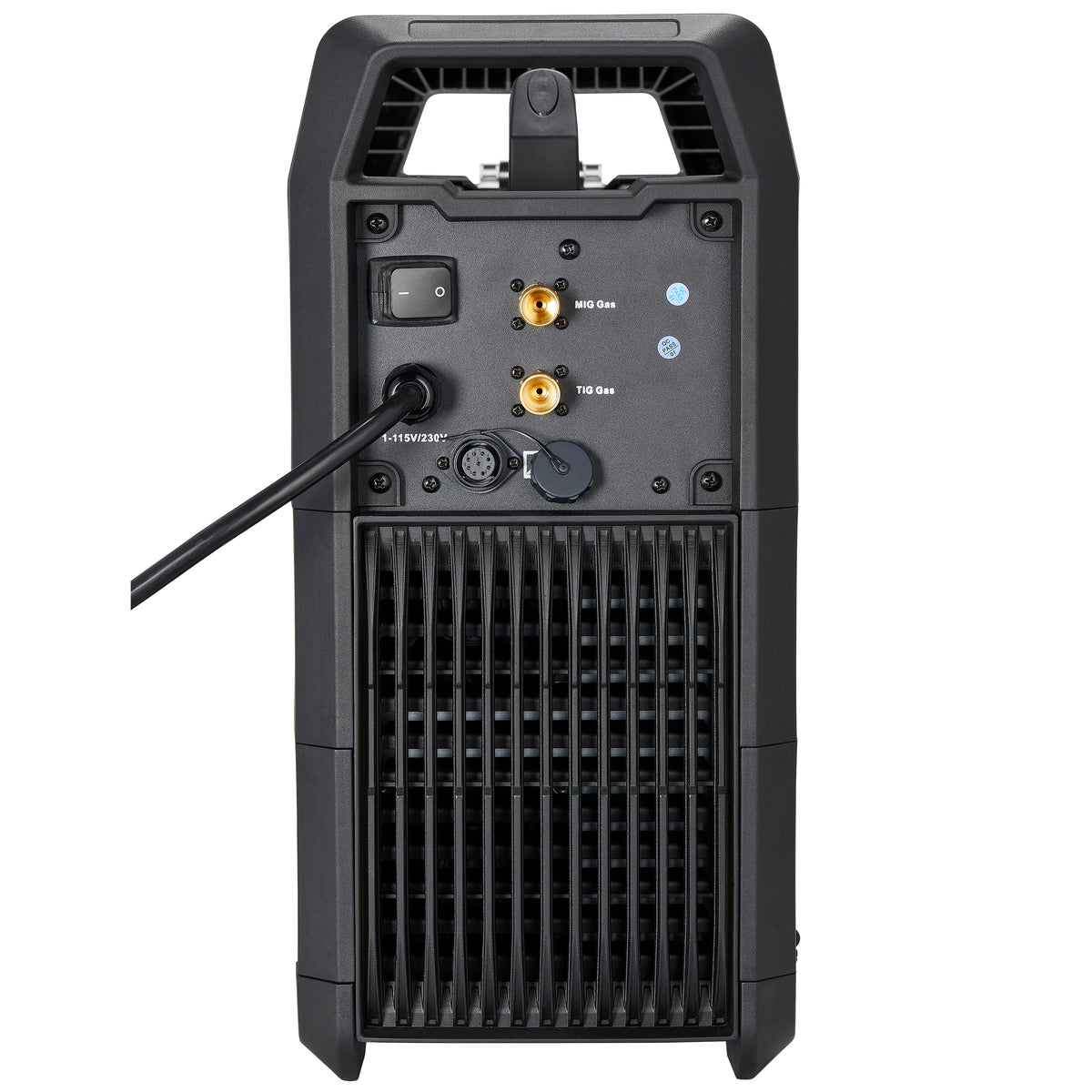

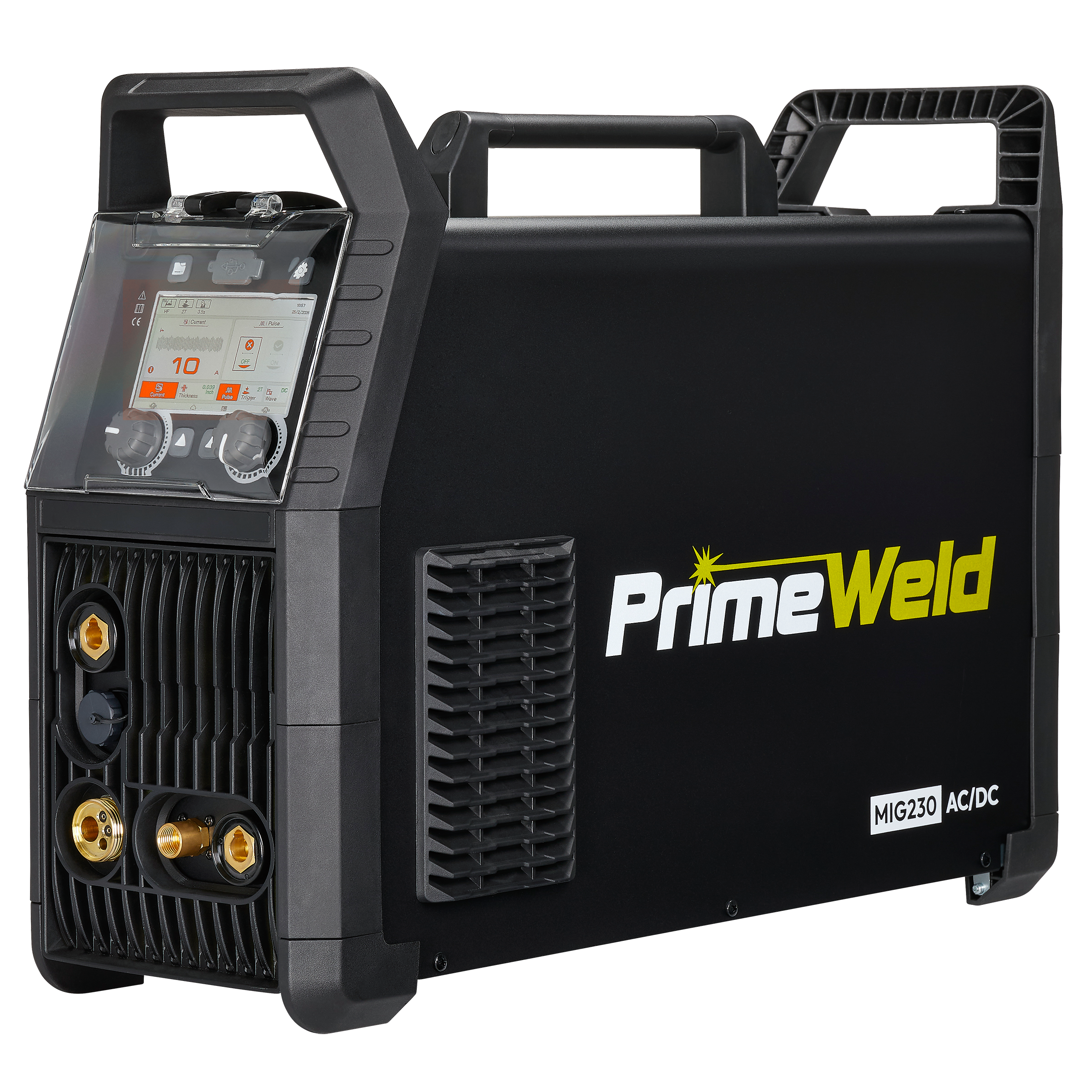

MIG230 4-in-1 AC/DC Pulse MIG / TIG / Stick Welder
DOUBLE PULSE MIG • AC/DC HF TIG • TOUCHSCREEN CONTROL
NEW MULTI-PROCESS PLATFORM
MIG230 4-in-1 AC/DC Pulse MIG / TIG / Stick Welder
DOUBLE PULSE MIG • AC/DC HF TIG • TOUCHSCREEN CONTROL
$1,899.00
The MIG230 combines Double Pulse MIG, AC/DC HF TIG, and Stick welding in one machine. A 5" touchscreen, synergic setup tools, and up to 100 saved programs make advanced welding faster and easier than ever.
- Double Pulse MIG
- AC/DC HF TIG up to 999 Hz
- 4-Roll Geared Wire Drive
- 110V/220V Dual Voltage with PFC
- 100 Job Memory Storage
NEW MULTI-PROCESS PLATFORM
THE NEXT GENERATION OF MULTI-PROCESS WELDING
The MIG230 introduces PrimeWeld's most advanced multi-process platform yet, combining Double Pulse MIG, AC/DC TIG, Stick welding, touchscreen control, and synergic setup tools in one powerful machine.
Built to help you spend less time fighting settings and more time laying down clean, consistent welds.

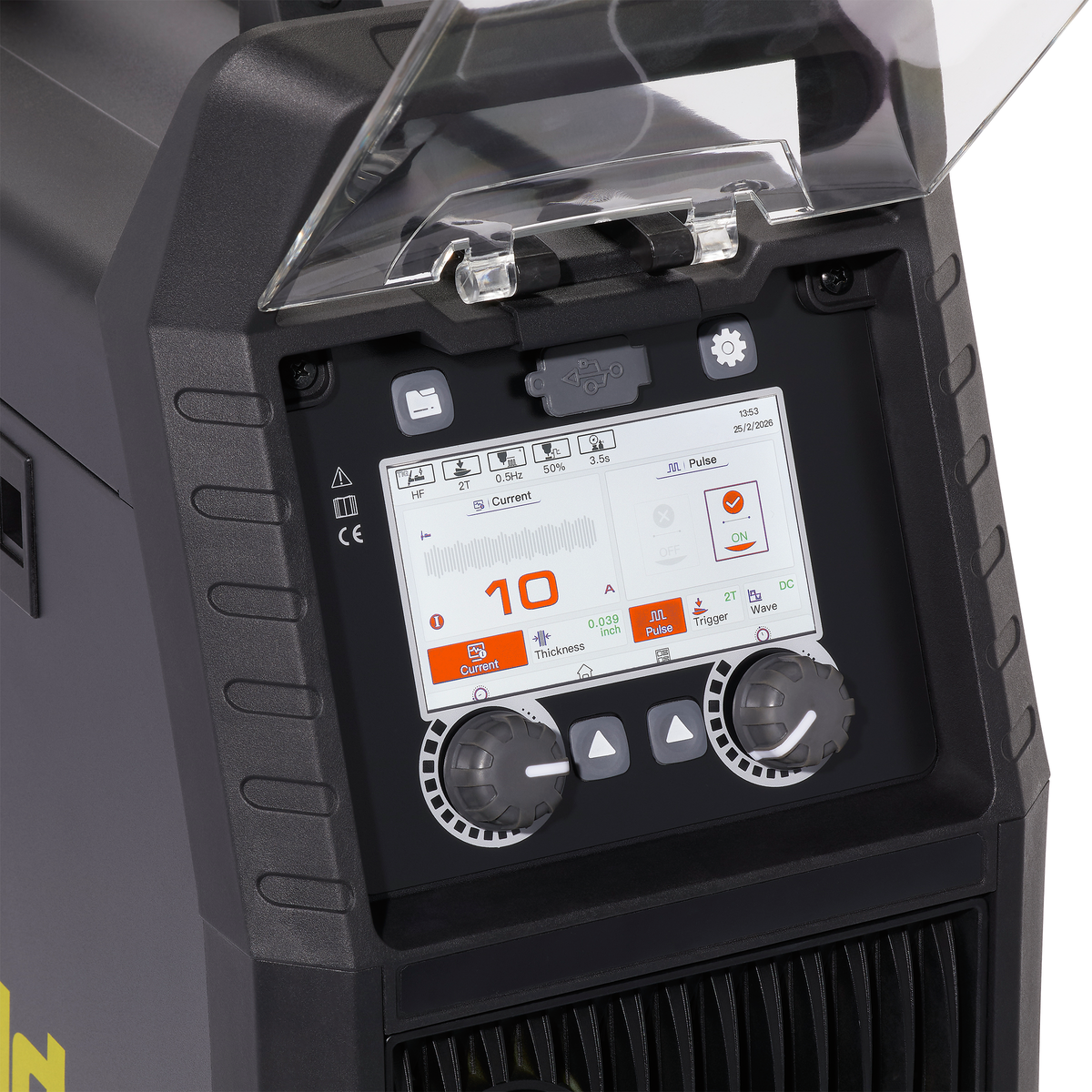

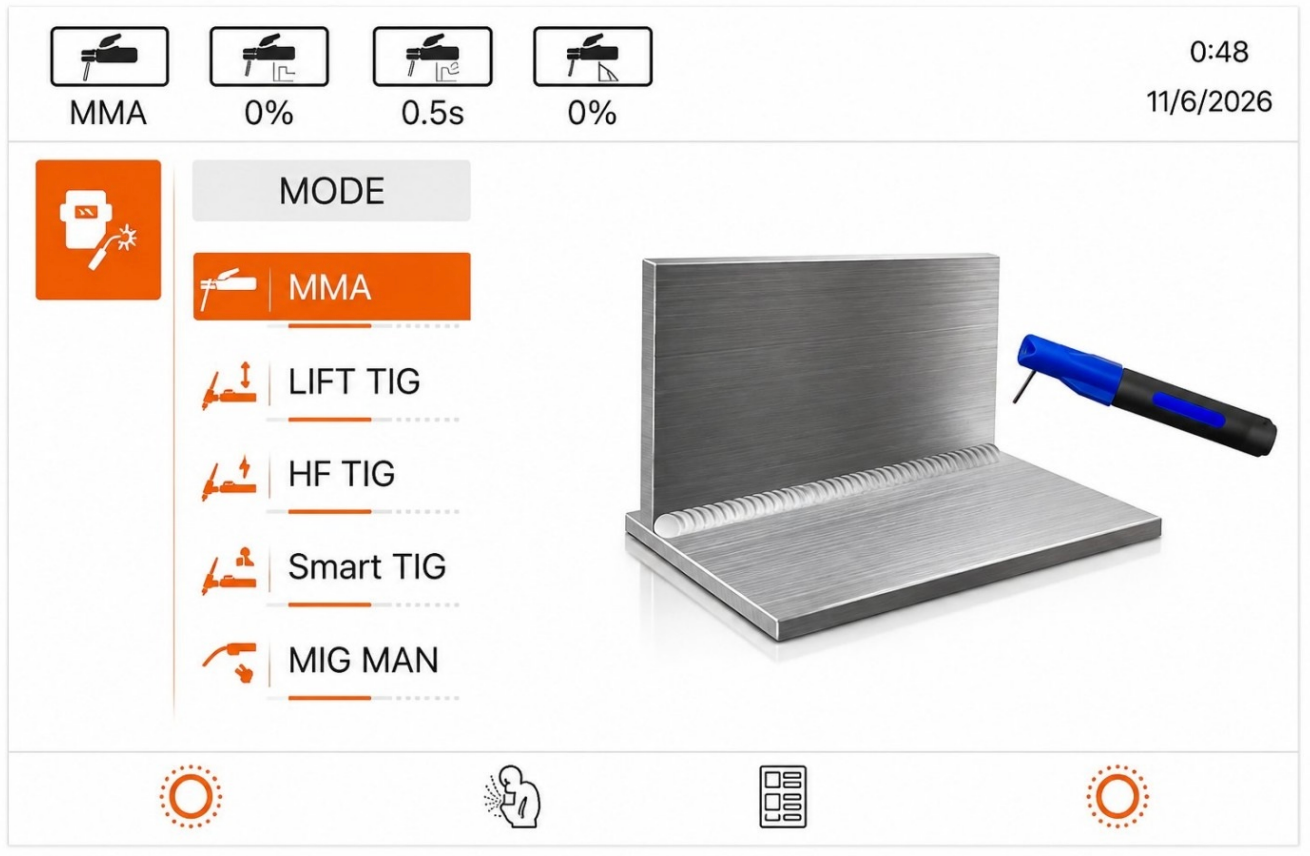

Touchscreen Control
MIG, TIG, and Stick. Visualized.
Navigate every process from the 5" color touchscreen, with quick access to Manual MIG, Synergic MIG, Pulse MIG, Double Pulse MIG, AC/DC TIG, and Stick settings.

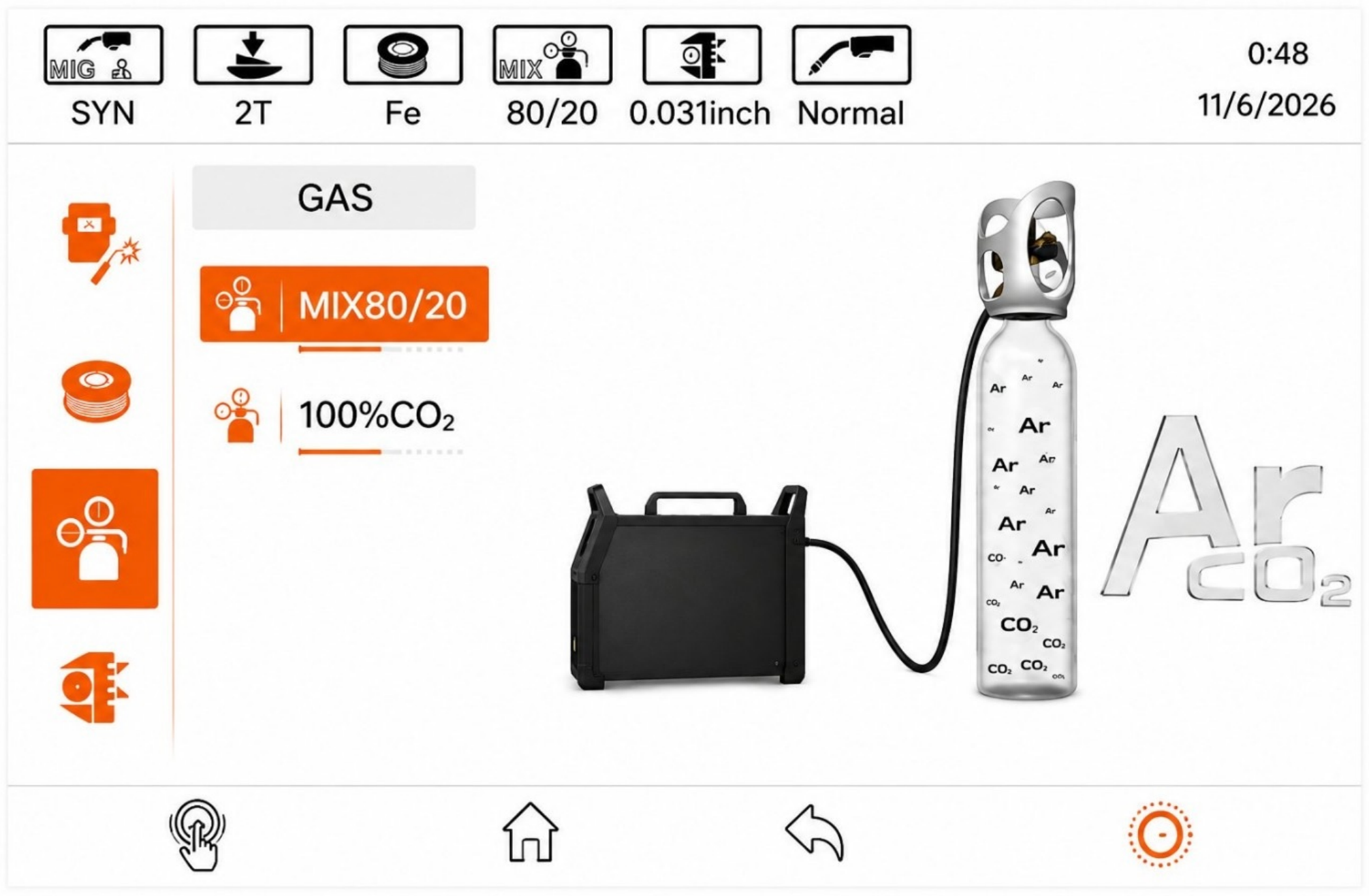

Synergic MIG Setup
Set Wire, Gas, and Go
Choose your wire type, wire size, gas, and joint setup. The MIG230 dials in starting parameters automatically, then lets you fine-tune from there. The digital 4-roll geared wire drive provides smooth, consistent wire feeding for steel, stainless, aluminum, and flux-core applications.

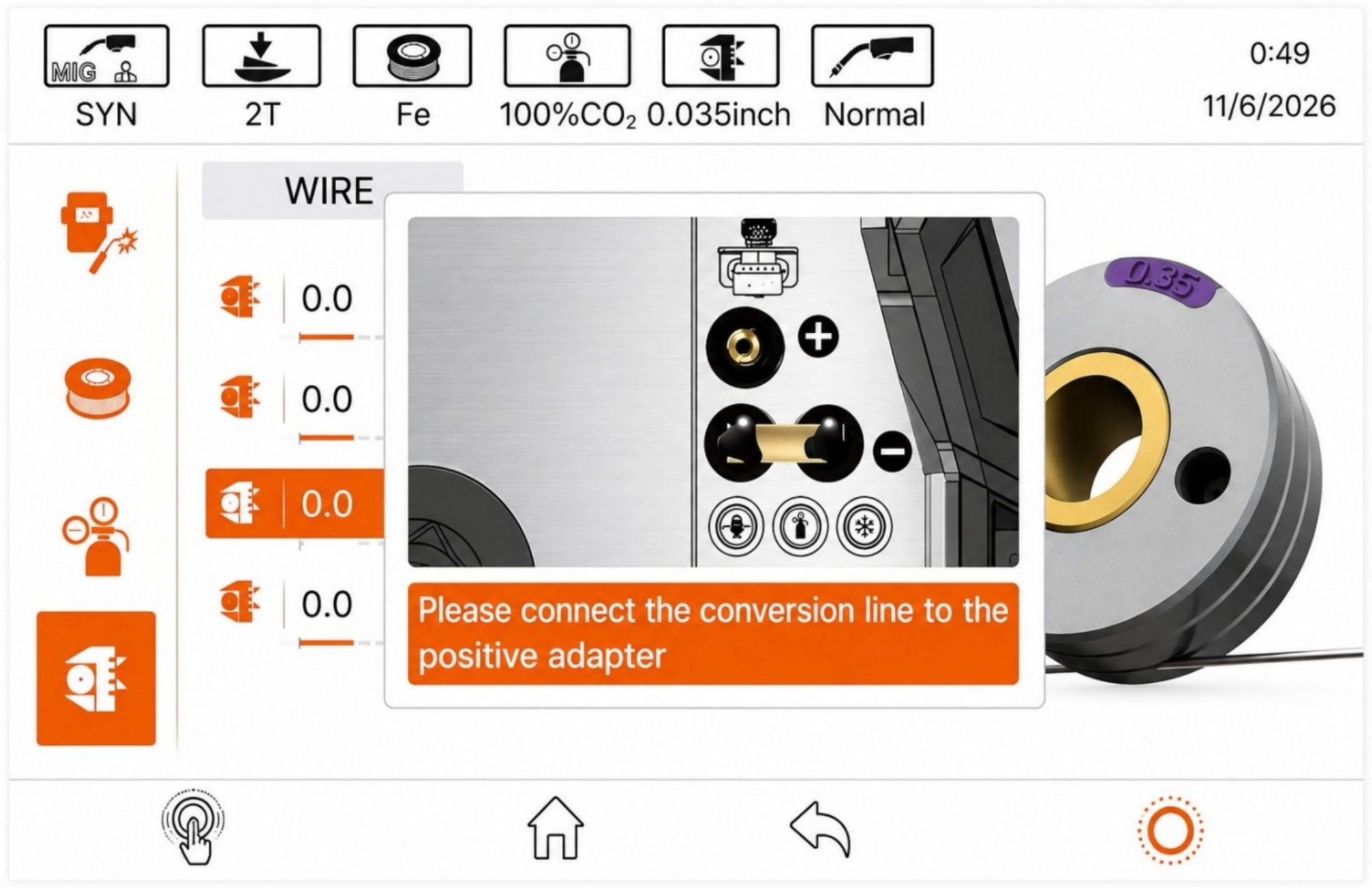

Built-In Guidance
Setup Help Right on the Screen
On-screen setup guidance helps walk you through process changes, wire setup, and polarity connections so you can spend less time checking the manual.

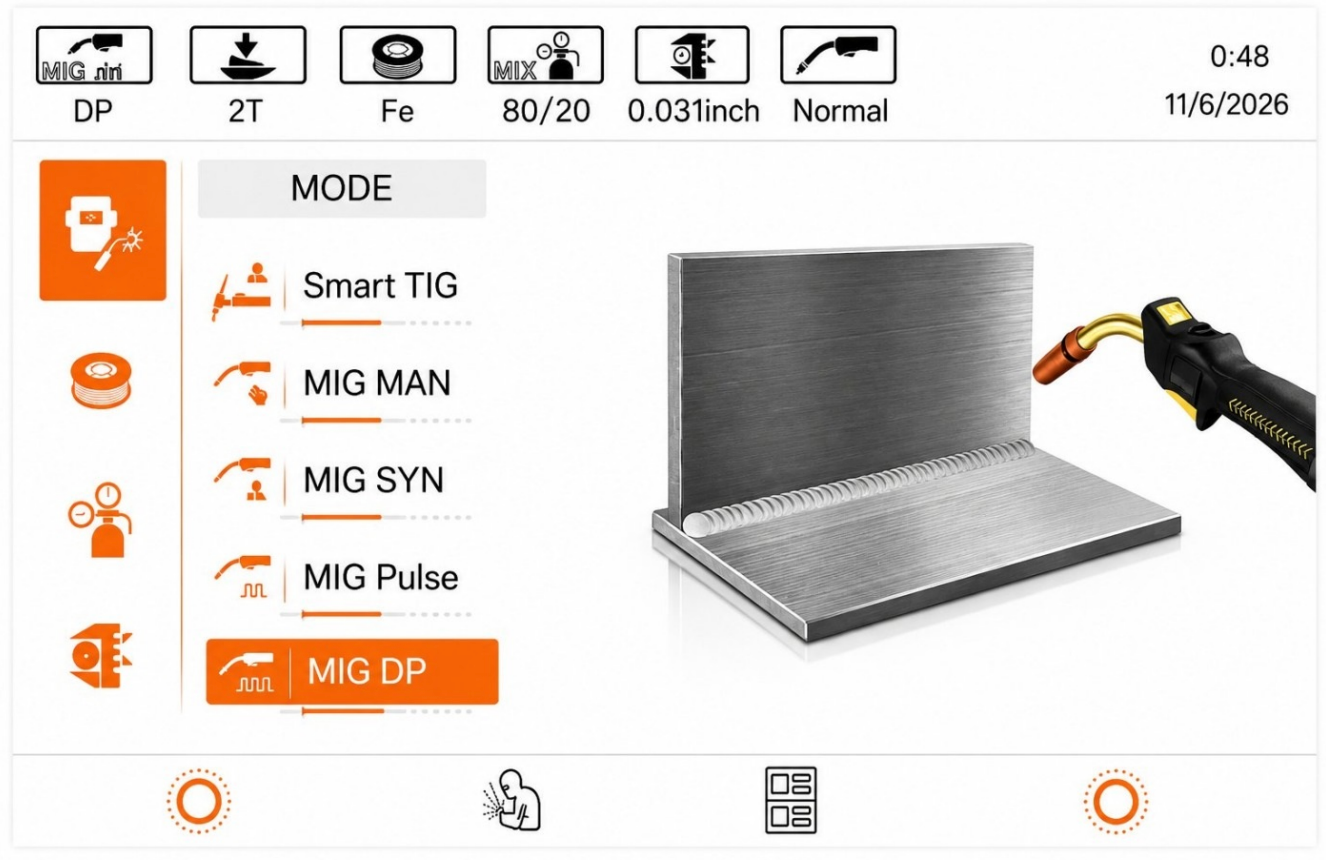

Double Pulse MIG
TIG-Like Aluminum Welds at MIG Speed
Double Pulse MIG automatically pulses the arc for cleaner, more consistent aluminum welds with lower heat input and minimal spatter. Compatible with spool guns and push-pull guns for expanded aluminum welding capability.

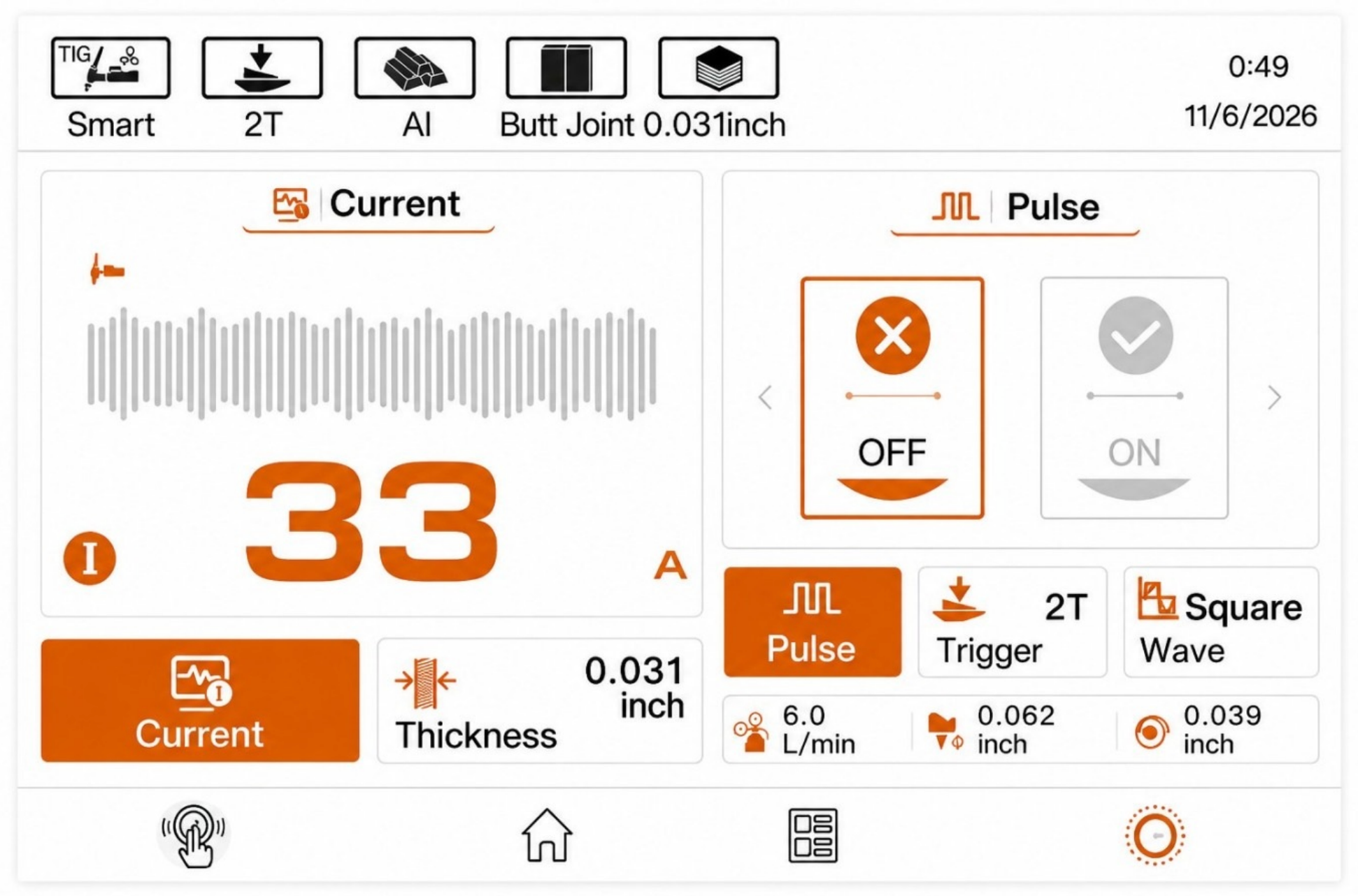

Smart TIG Setup
Advanced TIG Without the Guesswork
Select material, thickness, tungsten, filler, and gas to quickly generate TIG starting parameters for cleaner setup and more repeatable results.
Built for the Shop
One Machine for MIG, TIG, and Stick
The MIG230 combines multiprocess capability, touchscreen control, Power Factor Correction (PFC), and PrimeWeld durability in one shop-ready machine. Compatible with wired and wireless foot controls for hands-free amperage adjustment during TIG welding.
ADVANCED CONTROLS
Built-in Features
Faster setup. Less guesswork. Better welds across MIG, TIG, and Stick.
Double Pulse MIG
Produces TIG-like stacked weld appearance at MIG welding speeds by automatically pulsing the arc. Reduces heat input, minimizes spatter, and delivers cleaner aluminum welds with less operator effort.
4-IN-1 MULTIPROCESS
AC/DC Pulse MIG, AC/DC TIG, and Stick welding in a single machine with manual, synergic, pulse, and double pulse MIG modes.
MIXED AC/DC TIG
Blends AC cleaning action with DC penetration for faster puddle establishment and improved performance on thicker aluminum.
110V / 220V DUAL VOLTAGE
Run on a standard 110V outlet for lighter fabrication work, or connect to 220V power for full 230A output. Generator-ready for shop, field, and mobile welding applications.
5" TOUCHSCREEN CONTROL
Large color LCD touchscreen with intuitive navigation, built-in setup guidance, and quick access to every welding process and parameter.
100 JOB MEMORIES
Save and recall up to 100 welding programs for repeat jobs, favorite settings, and faster setup.
APPLICATIONS
WHAT CAN YOU WELD?
Weld aluminum, mild steel, stainless steel, silicon bronze, copper, cast iron, and more using Double Pulse MIG, AC/DC TIG, and Stick processes.
ALUMINUM
Double Pulse MIG and Mixed AC/DC TIG deliver exceptional aluminum performance with cleaner welds, lower heat input, and greater control.
MILD STEEL
Perfect for fabrication, repair, automotive work, and general shop projects using MIG, TIG, or Stick processes.
STAINLESS STEEL
Produce clean, precise welds on stainless steel for food-grade fabrication, automotive applications, and detailed TIG work.
AUTOMOTIVE & RESTORATION
Perfect for classic car restoration, sheet metal repair, custom fabrication, and specialty automotive work requiring precision and control.
FABRICATION & PRODUCTION
From home garages to professional fabrication shops, the MIG230 provides the versatility to tackle a wide range of welding projects.
MAINTENANCE & REPAIR
Repair equipment, machinery, trailers, gates, and structural components using MIG, TIG, or Stick welding.
COMPLETE PACKAGE
WHAT’S INCLUDED
Everything you need to start welding right out of the box.
Cables & Connections
- Ground Clamp — 12 ft cable
- Stick Electrode Holder — 12 ft cable
- Argon Hose
- Gas Regulator
- 240V to 120V Power Adapter
Torches & Controls
- 15 ft MIG Torch with Hand Controls
Support & Extras
- Owner's Manual
- 3-Year Warranty Coverage
- U.S.-Based Technical Support
- Free Shipping
TECHNICAL DETAILS
SPECIFICATIONS
Power
Input Power
110V / 220V Dual Voltage, Single Phase, 50/60 Hz
Power Factor
0.99 PFC (Power Factor Correction)
Open Circuit Voltage
72V (VRD Equipped: 14.4V)
Generator Requirement
10 kVA Minimum
MIG PERFORMANCE
Output Range
220V: 25–230A
110V: 25–140A
Duty City @ 104°F
220V: 25% @ 230A · 60% @ 148A · 100% @ 115A
110V: 25% @ 140A · 60% @ 90A · 100% @ 70A
Wire Compatibility
.023"–.045"
Steel
Stainless Steel
Aluminum
Flux-Core
4" & 8" Spools
TIG PERFORMANCE
Process
HF TIG • Lift TIG • Smart TIG
AC/DC Pulse TIG up to 999 Hz
Output Range
220V: 10–230A
110V: 10–140A
Duty Cycle @104°F
220V: 25% @ 230A · 60% @ 148A · 100% @ 115A
110V: 25% @ 140A · 60% @ 90A · 100% @ 70A
STICK PERFORMANCE
Output Range
220V: 10–200A
110V: 10–110A
Duty Cycle @ 104°F
220V: 25% @ 200A · 60% @ 130A · 100% @ 100A
110V: 25% @ 110A · 60% @ 71A · 100% @ 55A
SIZE & WARRANTY
Weight
61.5 lbs
Dimensions
26" L × 9" W × 19" H
Warranty
3-Year PrimeWeld Warranty
MACHINE DETAILS
Connectors
Dinse 35/50
Protection Class
IP21S
Insulation Class
Class H
To see the full specifications, check out the User Manual below.
